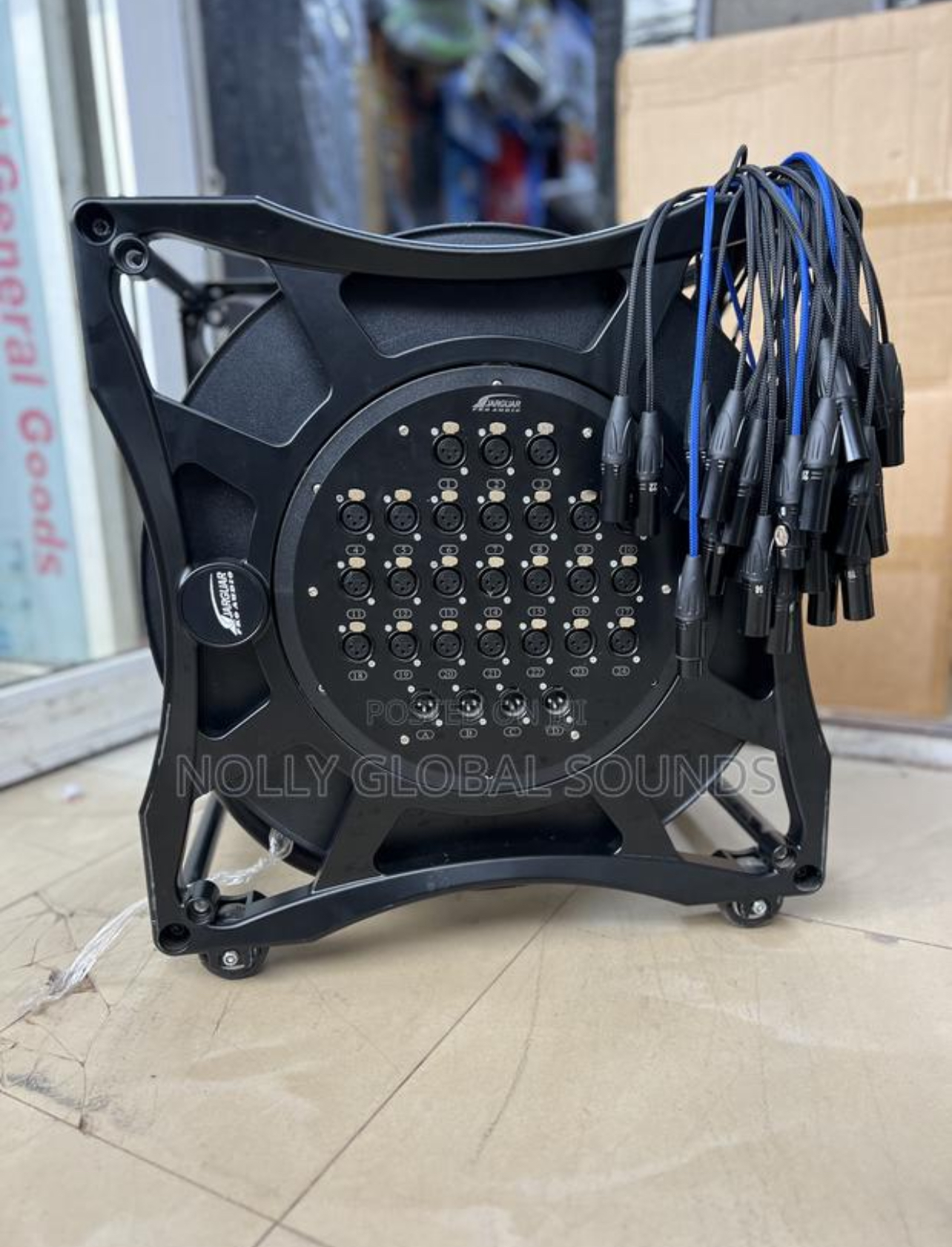

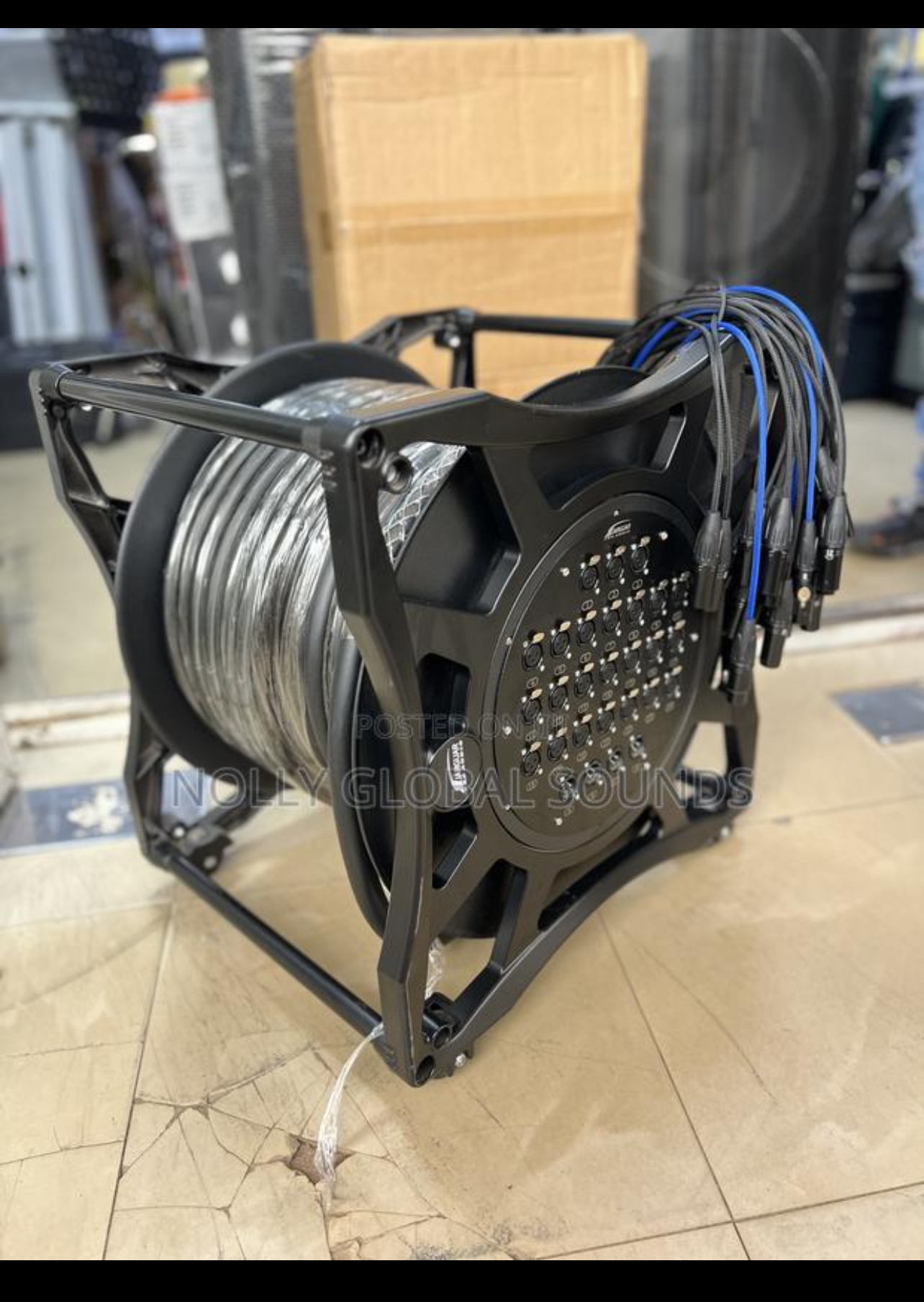

Jaguar 24 channel multicore cable on a portable extendable reel style stage box, featuring Neutrik connectors.

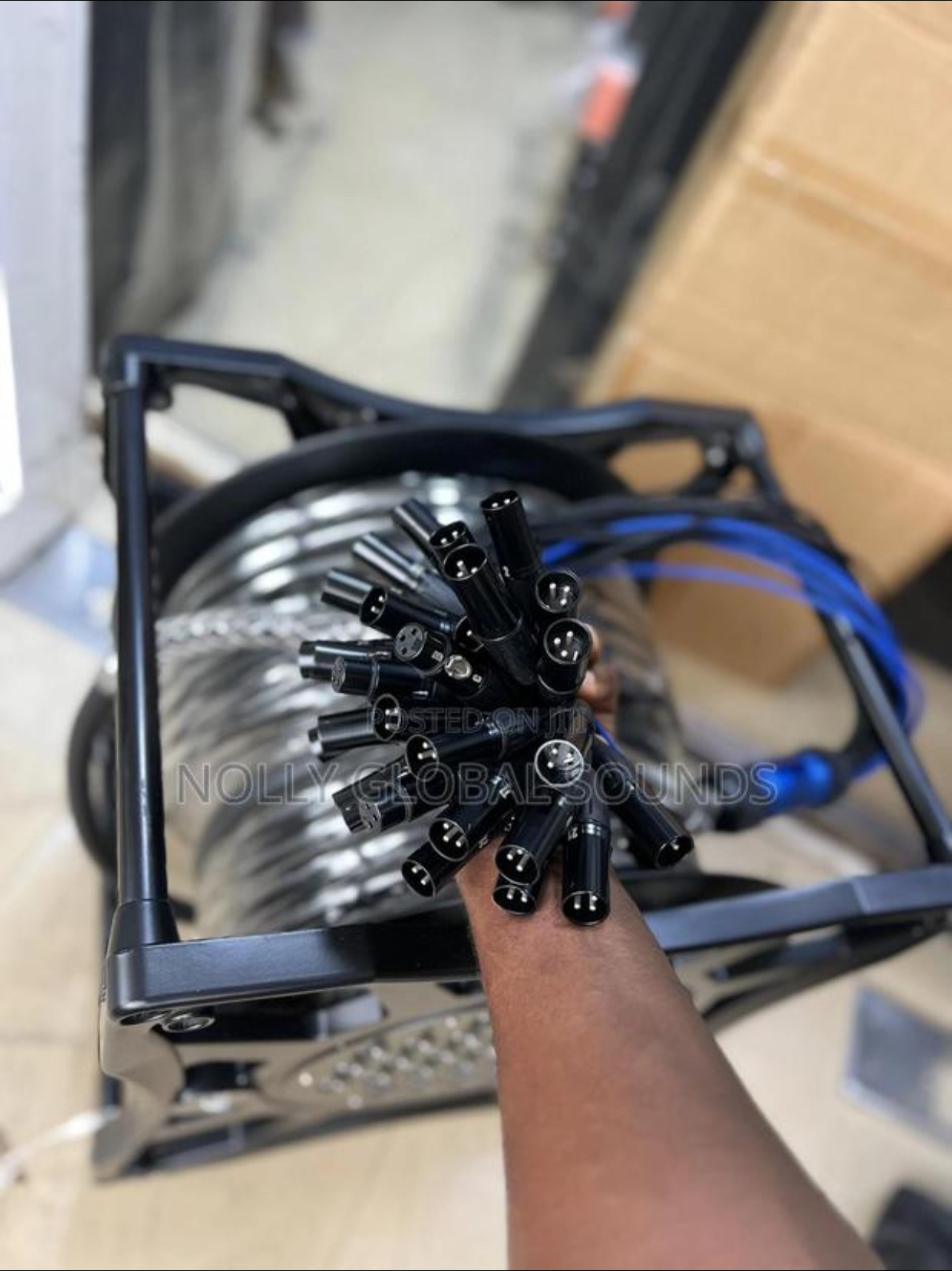

Features 24 XLR balanced send and 4 group return channels. Instruments (DI Box) and microphones are plugged into the send inputs marked 1 to 24 on the stagebox. The signals are carried through the multicore to 24 corresponding XLR(m) number coded connectors.

There are 4x XLR(m) return outputs on the stage box marked A to D. These channels connect to 4x XLR(f) connectors which are used to take the output signals of the mixer back to the stage box for connections with amplifiers and speakers.

Typically used to connect performers on stage to a mixing desk.

24 Reel stage box for easy usage

balanced Send Channels

4 group balanced Return Channels

50 meter cable length

Neutrik Connectors – Stage box.
