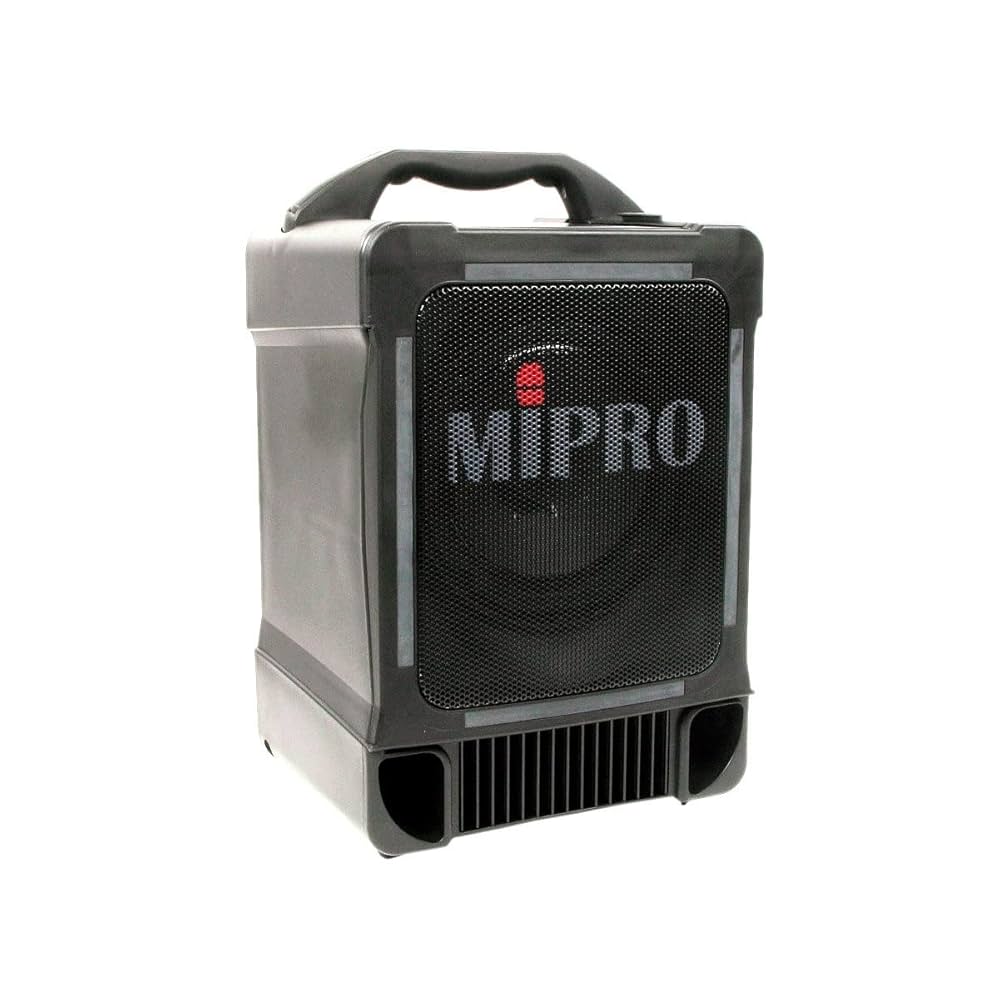

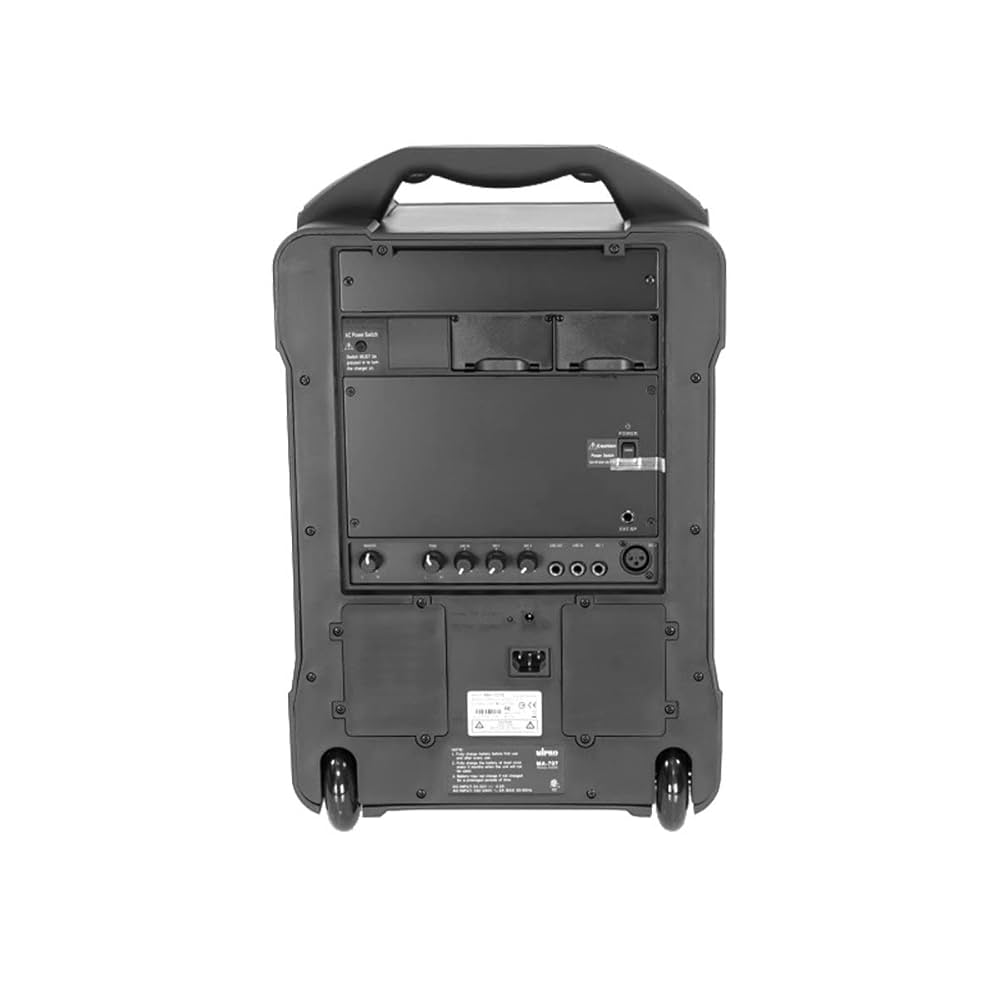

Model ma-707

name classic portable pa

max. spl 107 db

drivers 8" full-range

frequency range 70 hz – 14 khz

audio inputs mic in: 1 × xlr, 1 × 1/4" (6.3 mm)

line in: 1 × 1/4" (6.3 mm)

audio output line out: 1 × 1/4" (6.3 mm)

amplifier class ab

output power 100 w rms, 170 w peak

receiver modules up to 2

audio players cd/usb player (optional)

transmitter modules n/a

extension speaker 1 × 1/4" (6.3 mm)

other functions tone control

power supply ac 100 – 240 v or dc 24 – 32 v

battery built-in lead-acid battery

battery indicator single led indicator

standby time up to 8 hours

color black

dimensions 325 × 518 × 258 mm (w × h × d)

weight approx. 12.3 kg

optional accessories sc-707 carry bag, ms-70 tripod stand, mm-series microphones, mb-80 li-ion battery

patents and approvals patented. telecom and safety regulations approved.
